DH75 Wi-Fi Dehumidifier

Removes Up To 75 Pints Per Day

Key Specifications

Manufacturer: GeneralAire
Part Number: 5334
Typical Application: Crawl Space
Typical Installation: Ducted
Home Size: 5200 SQFT
Pints Per Day: 100
Control: Wi-Fi / APP / Touch-screen
Filter MERV Rating: 11
Warranty (Years): 2 years

Maintenance

Annual Filter Replacement

Features

Removes up to 75 pints per day (per 24 hours @ 80°F / 27°C – 60% RH)

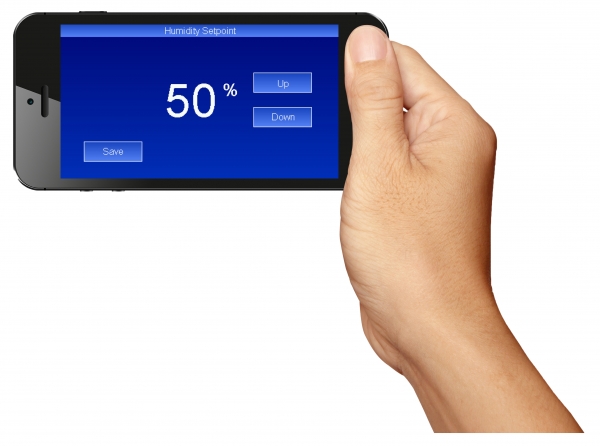

LCD Touch Screen and Wi-Fi Control
Low temperature shutoff
Fan-only function
Filter hour indicator
Safety grates with integrated handles
Adjustable feet
Quick release filter access doors
MERV 11 pleated filter
GeneralAire® TuffCoil™ technology features anti-corrosive copper coils of advanced metallurgy that are designed and manufactured to eliminate corrosive agents that result in system failure.

Other Information

Weight (pounds): 58
Dimensions (inches): 12.75 H x 12.6 W x 21 D
Power: 120VAC, 60 Hz
Energy factor (liters / kwh): 2.0
Current draw (AMPS): 6.65 amps
Air flow (CFM): 180
Inlet air operating temperature: 50°F – 90°F / 10°C – 32°C
Control board display temperature: -4º F – 158º F operating / -22º F – 176º F storage
- – 20º C – 70º C operating / -30º C – 80º C storage
MERV 11 replacement filter 10″ x 12″ x 1″ (GFI #7143)
- Replace every 6 months
Cabinet insulation: foil-faced fiberglass (1/2″ thick & closed sell foam)
Duct connections (inches): 8; diameter (inlet & outlet)
Drain pan: heavy, duty, injection molded
Noise (decibels): less than 55 (unducted)
Warranty (years): 5

Q: How do I connect my dehumidifier to my home’s Wi-Fi? A: Follow these steps:

Turn your dehumidifier on
After the unit is finished “sampling” the air, select “Settings”
In Settings, select “Wi-Fi”
The available Wi-Fi options will appear
Select the service you wish to use
Enter the Wi-Fi service password

Q: Where can I find the GeneralAire Wi-Fi APP? A: The APP can be found in your smart device’s APP store and on Google Play.

300-8105 - DH75 DH100 INSTALLATION OWNERS MANUAL 5333 and 5334 REV B 300-8105_-_DH75_DH100_INSTALLATION_OWNERS_MANUAL_5333_and_5334_REV_B.pdf
DH75 & DH100 Display Board Replacement Instructions DH75__DH100_Display_Board_Replacement_Instructions.pdf
DH75 & DH100 Hanging Kit Instructions DH75__DH100_Hanging_Kit_Instructions.pdf
DH75 and DH100 Spec Sheet DH75_and_DH100_Spec_Sheet.pdf
Resetting Filter Hours During a Filter Change in a DH75 or DH100 Dehumidier Resetting_Filter_Hours_During_a_Filter_Change_in_a_DH75_or_DH100_Dehumidier.pdf
Wi Fi Connectivity Concerns Wi_Fi_Connectivity_Concerns.pdf
5333 & 5334 Brochure - 032025 5333___5334__Brochure_-_032025.pdf

Manufacturer: GeneralAire
Part Number: 5334
Typical Application: Crawl Space
Typical Installation: Ducted
Home Size: 5200 SQFT
Pints Per Day: 100
Control: Wi-Fi / APP / Touch-screen
Filter MERV Rating: 11
Maintenance: Annual Filter replacement
Filter: Yes
Model Name: DH75
Type: Dehumidifier
Style: Wi-Fi
Voltage: 120V
Warranty (Years): 2 years

PARTS

Part Name	Ref #	GFI #	Qty Req'd	Price
Dehumidifier Hanging Kit	6560	6560	99989	$100.42
DH75 Collar Kit	7145	300-6200	99996	$31.68
300-5001 Display Board Assembly	7375	7375	99998	$551.63

Dehumidifier Hanging Kit

GFI# 6560 Ref # 6560

$100.42 Qty Req'd: 99989

DH75 Collar Kit

GFI# 300-6200 Ref # 7145

$31.68 Qty Req'd: 99996

300-5001 Display Board Assembly

GFI# 7375 Ref # 7375

$551.63 Qty Req'd: 99998
