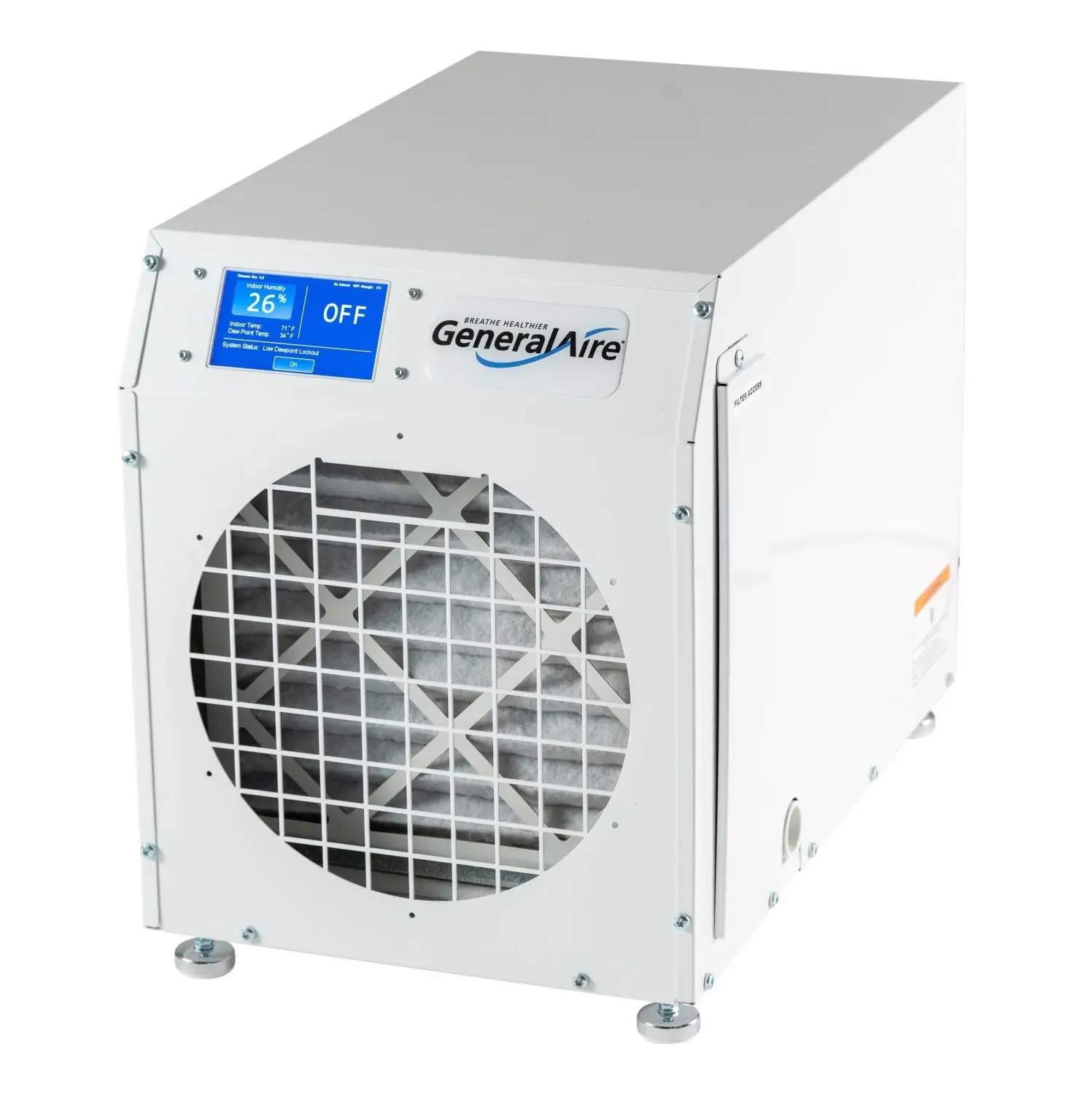

DH100 Wi-Fi Dehumidifier

Removes Up To 100 Pints Per Day

Key Specifications

Manufacturer: GeneralAire
Part Number: 5333
Typical Application: Attic, Basement
Typical Installation: Drain / Condensate Pump
Home Size: 3800 SQFT
Control: Wi-Fi / APP / Touch-screen
Filter MERV Rating: 11
Warranty (Years): 2 years

Maintenance

MERV replacement every 6 months

Features

Removes up to 100 pints per day (per 24 hours @ 80°f / 27°c – 60% RH)
LCD touch screen and Wi-Fi control
Low temperature shutoff
Fan-only function
Filter hour indicator
Adjustable feet
Quick release filter access doors
Safety grates with integrated handles
MERV 11 pleated filter
GeneralAire® TuffCoil™ technology features anti-corrosive copper coils of advanced metallurgy that
are designed and manufactured to eliminate corrosive agents that result in system failure.

Other Information

Weight (pounds): 65
Dimensions (inches): 15.75 H x 12.6 W x 21 D
Power supply: 120 VAC, 60 Hz
Energy factor (liters / kwh): 1.86
Current draw (AMPS): 10.8
Air flow (CFM): 220
Inlet air opening temperature: 50ºF – 90ºF / 10ºC – 32ºC
Control board display temperature: -4ºF – 158ºF operating / -22ºF – 176ºF storage
- -20ºC – 70ºC operating / -30ºC – 80ºC storage
MERV 11 replacement filter 12″ x 12″ x 1″ (GFI #7144)
- Replace every 6 months
Cabinet insulation: foil-faced fiberglass (1/2″ thick & closed cell foam)
Duct connections (inches): 10; diameter (inlet & outlet)
Drain pan: heavy duty, injection molded
Noise (decibels): less than 55 (unducted)
Warranty: See Warranty Chart

300-8105 - DH75 DH100 INSTALLATION OWNERS MANUAL 5333 and 5334 REV B 300-8105_-_DH75_DH100_INSTALLATION_OWNERS_MANUAL_5333_and_5334_REV_B-1.pdf
DH75 & DH100 Hanging Kit Instructions DH75__DH100_Hanging_Kit_Instructions-1.pdf
DH75 and DH100 Spec Sheet DH75_and_DH100_Spec_Sheet-1.pdf
Resetting Filter Hours During a Filter Change in a DH75 or DH100 Dehumidier Resetting_Filter_Hours_During_a_Filter_Change_in_a_DH75_or_DH100_Dehumidier-1.pdf
Wi Fi Connectivity Concerns Wi_Fi_Connectivity_Concerns-1.pdf
5333 & 5334 Brochure - 032025 5333___5334__Brochure_-_032025-1.pdf

Manufacturer: GeneralAire
Part Number: 5333
Typical Application: Attic, Basement
Typical Installation: Drain / Condensate Pump
Home Size: 3800 SQFT
Pints Per Day: 75
Control: Wi-Fi / APP / Touch-screen
Filter MERV Rating: 11
Maintenance: Annual Filter replacement
Filter: Yes
Model Name: DH75
Type: Dehumidifier
Style: Wi-Fi
Voltage: 120V
Warranty (Years): 2 years

PARTS

Part Name	Ref #	GFI #	Qty Req'd	Price
300-0090 Bracket for Condensation Pump	7147	300-0090	99998	$22.33
DH100 Collar Kit	7146	600-6200	99996	$42.26
Dehumidifier Hanging Kit	6560	6560	99989	$100.42
300-5001 Display Board Assembly	7375	7375	99998	$551.63

300-0090 Bracket for Condensation Pump

GFI# 300-0090 Ref # 7147

$22.33 Qty Req'd: 99998

DH100 Collar Kit

GFI# 600-6200 Ref # 7146

$42.26 Qty Req'd: 99996

Dehumidifier Hanging Kit

GFI# 6560 Ref # 6560

$100.42 Qty Req'd: 99989

300-5001 Display Board Assembly

GFI# 7375 Ref # 7375

$551.63 Qty Req'd: 99998
