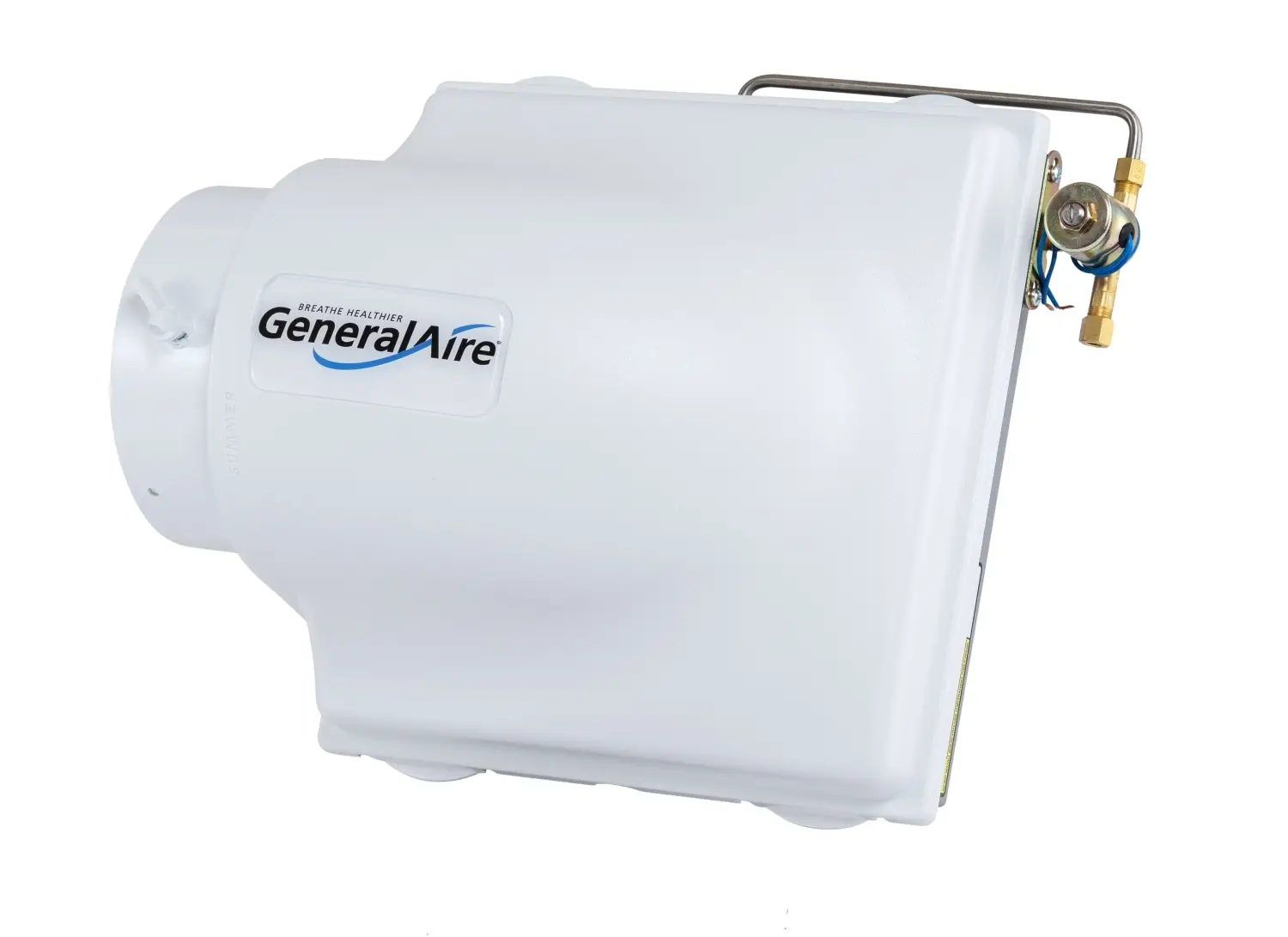

Model 3200A Evaporative Humidifier

For Homes Up To 3200 Square Feet.

Key Specifications

Part Number: 5801
Type: Humidifier
Gallons Per Day: up to 12
Control: Automatic / Wi-Fi / APP
Vapor Pad Size: 10
Plenum opening (inches): 9 1/8 W x 9 1/8 H
Bypass opening (inches): 6
Power (volts): 24
Warranty (Years): 5 years

Maintenance

Replace 1-2 times per season

Features

Maximum Humidity Output Through:
- Low-profile cover that forces air directly through the Vapor Pad® at its warmest point
- Stainless steel distributor tube for cold or hot water supply
- Redesigned cover and chassis to direct hot furnace air directly through the Vapor Pad®
- Reduced Vapor Pad® frame for maximum pad exposure
Left or right bypass installation option
Left or right solenoid valve installation option
Easy Maintenance Through:
- Snap-in-place, easy lift-off cover
- Sturdy two-piece Vapor Pad® frame that easily pulls apart to release & replace the Vapor Pad®

Your furnace sends warm air through the humidifier and a water-soaked Vapor Pad®, evaporating water within the Vapor Pad®. Newly-moistened air is then delivered throughout your home via your home’s duct system. Breathe Healthier® with a GeneralAire® 3200 Evaporative Humidifier.

3200-18 RevD - Install Manual - 3200-4200 - JPF - 1-8-2025 - GFI 5800 5801 5950 5951 - USA 3200-18_RevD_-_Install_Manual_-_3200-4200_-_JPF_-_1-8-2025_-_GFI__5800_5801_5950_5951_-_USA.pdf
3200 4200 Finding Model & Serial Numbers 3200_4200_Finding_Model__Serial_Numbers.pdf
4200-05 Preparing the Solenoid Valve Mounting Bracket for a Left to Right Side Installation USA 4200-05_Preparing_the_Solenoid_Valve_Mounting_Bracket_for_a_Left_to_Right_Side_Installation_USA.pdf
Evaporative Humidifiers 3200 & 4200 Brochure Evaporative_Humidifiers_3200__4200_Brochure.pdf
GeneralAire Evaporative Humidifier Models 3200 & 4200 Spec Sheet GeneralAire_Evaporative_Humidifier_Models_3200__4200_Spec_Sheet.pdf
Owners Manual for GeneralAire Evaporative and Fan-Powered Humidifiers Owners_Manual_for_GeneralAire_Evaporative_and_Fan-Powered_Humidifiers.pdf

Part Number: 5801
Type: Humidifier
Typical Application: Forced Air - Ventilation
Home Size: 3,200 SQFT
Gallons Per Day: up to 12
Control: Automatic / Wi-Fi / APP
Vapor Pad Size: 10
Maintenance: Annual Vapor Pad replacement
Plenum opening (inches): 9 1/8 W x 9 1/8 H
Bypass opening (inches): 6
Pallet quantity (units): 36
Typical Installation: Forced Air - Ventilation
Power (volts): 24
Warranty (Years): 5 years
Manufacturer: GeneralAire
Model Name: 3200A
Style: Evaporative - Bypass
Voltage: 24V

PARTS

Part Name	Ref #	GFI #	Qty Req'd	Price
900-28 Damper Disk	7573	900-28	9990	$21.84
GA10 Vapor Pad	7905	7905	99701	$24.53
3200-13 Cover for 3200	7227	3200-13	99999	$35.05
3200-14 Drain Pan	7228	3200-14	99983	$9.32
3200-01 Chassis for 3200	7226	3200-01	99998	$23.16
4200-21 Distribution Tube Assembly	7235	4200-21	99970	$10.37
900-29 Damper Spring	7028	900-29	9997	$0.55
900-11 Damper Knob	7572	900-11	9990	$6.73
727-58 24V Transformer (12VA)	7118	7118	9963	$40.60
GFX5 Automatic Digital Humidistat	7172	GFX5	100000	$301.95

900-28 Damper Disk

GFI# 900-28 Ref # 7573

$21.84 Qty Req'd: 9990

GA10 Vapor Pad

GFI# 7905 Ref # 7905

$24.53 Qty Req'd: 99701

3200-13 Cover for 3200

GFI# 3200-13 Ref # 7227

$35.05 Qty Req'd: 99999

3200-14 Drain Pan

GFI# 3200-14 Ref # 7228

$9.32 Qty Req'd: 99983

3200-01 Chassis for 3200

GFI# 3200-01 Ref # 7226

$23.16 Qty Req'd: 99998

4200-21 Distribution Tube Assembly

GFI# 4200-21 Ref # 7235

$10.37 Qty Req'd: 99970

900-29 Damper Spring

GFI# 900-29 Ref # 7028

$0.55 Qty Req'd: 9997

900-11 Damper Knob

GFI# 900-11 Ref # 7572

$6.73 Qty Req'd: 9990

727-58 24V Transformer (12VA)

GFI# 7118 Ref # 7118

$40.60 Qty Req'd: 9963

GFX5 Automatic Digital Humidistat

GFI# GFX5 Ref # 7172

$301.95 Qty Req'd: 100000
